Lakeside BESS

100MW/200MWh UK's largest transmission-connected BESS

Lakeside Battery Energy Storage System (BESS) is a significant energy storage facility located near Drax in North Yorkshire, England. Developed and fully owned by TagEnergy, the project became operational in October 2024 and is recognised as the UK's largest transmission-connected battery storage system at the time.

The facility boasts a capacity of 100MW/200MWh, enabling it to store surplus electricity generated during periods of low demand and release it back into the grid during peak demand, thereby enhancing grid stability and supporting the integration of renewable energy sources.

Lakeside BESS utilises 54 Tesla Megapack 2XL lithium-ion batteries, supplied by Tesla, which also served as the Engineering, Procurement, and Construction (EPC) contractor for the project. The system is optimised using Tesla's Autobidder AI software, which analyses real-time data on energy demand, grid conditions, and electricity prices to efficiently manage electricity storage and dispatch.

Wilson Power Solutions supplied Lakeside with the full scope of transformers, from grid and MV to auxiliary and earthing transformers. Twenty-seven 4200kVA 33kV/480-480V Wilson T2 Ecotrans® Transformers are connected to fifty-four Tesla megapacks. The MV transformers connect to an 80/106MVA 132/33kV Wilson Power Transformer. The site's balance of plants is powered by a 150kVA 33kV/415V Auxiliary Earthing Transformer, which provides earthing protection.

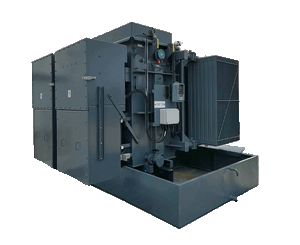

The bespoke-built Wilson T2 Ecotrans® large distribution transformers were specifically engineered to work seamlessly with Tesla Megapacks, featuring dual LV, and are fully compliant with EU Ecodesign Tier 2 transformer loss regulation. The transformers are also equipped with a range of ancillaries, including an oil temperature indicator, pressure relief devices and a steel bund designed to contain 110% of the transformer’s oil volume for enhanced safety.

Sector	Battery Energy Storage System
Developer	TagEnergy
Project	Lakeside 100MW/200MWh
Location	Drax, North Yorkshire
Scope of Work	80/106MVA 132/33kV Wilson Power Transformer Twenty-seven 4.2MVA 33kV/480-480V Wilson T2 Ecotrans® Large Distribution Transformers 150kVA 33kV/415V Wilson Auxiliary Earthing Transformer

200 MWh

storage capacity

Tesla Megapacks

MV Transformers

Erika Wilson - Managing Director - Wilson Power Solutions

“Lakeside BESS is a true testament to the industry’s restless pursuit of Net Zero. Through our long-standing relationship with Tesla, we’re proud to have developed a transformer solution that seamlessly integrates with many of the country’s largest battery energy storage systems. We’re delighted to see these huge steps towards decarbonisation happening here in our home county of Yorkshire.”

Erika Wilson - Managing Director

Wilson Power Solutions

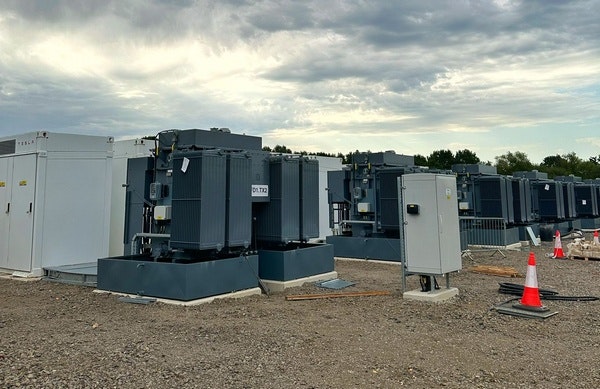

Wilson T2 distribution transformer at Lakeside energy park

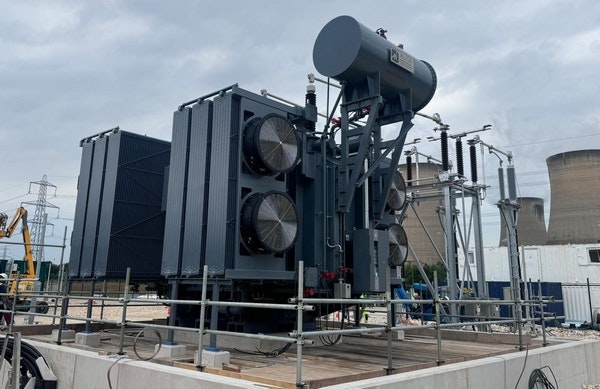

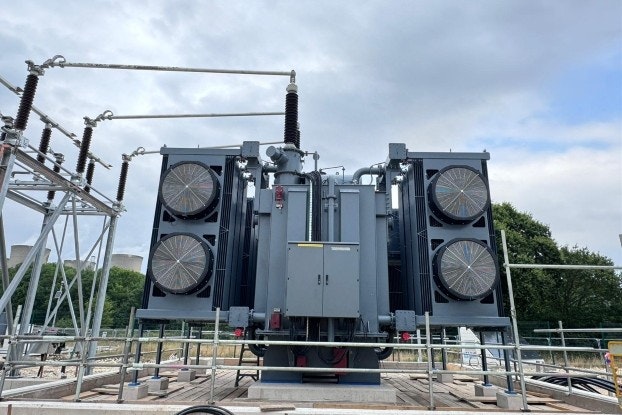

Wilson power transformer at Lakeside Energy Park

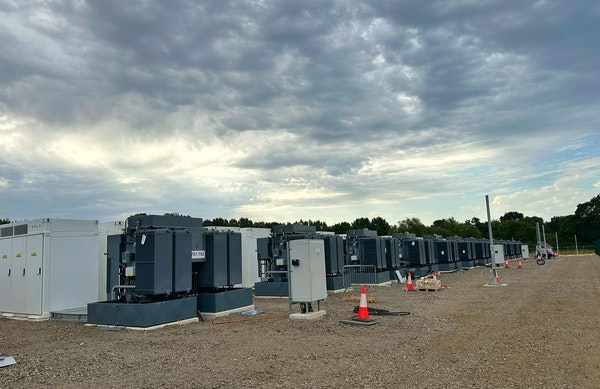

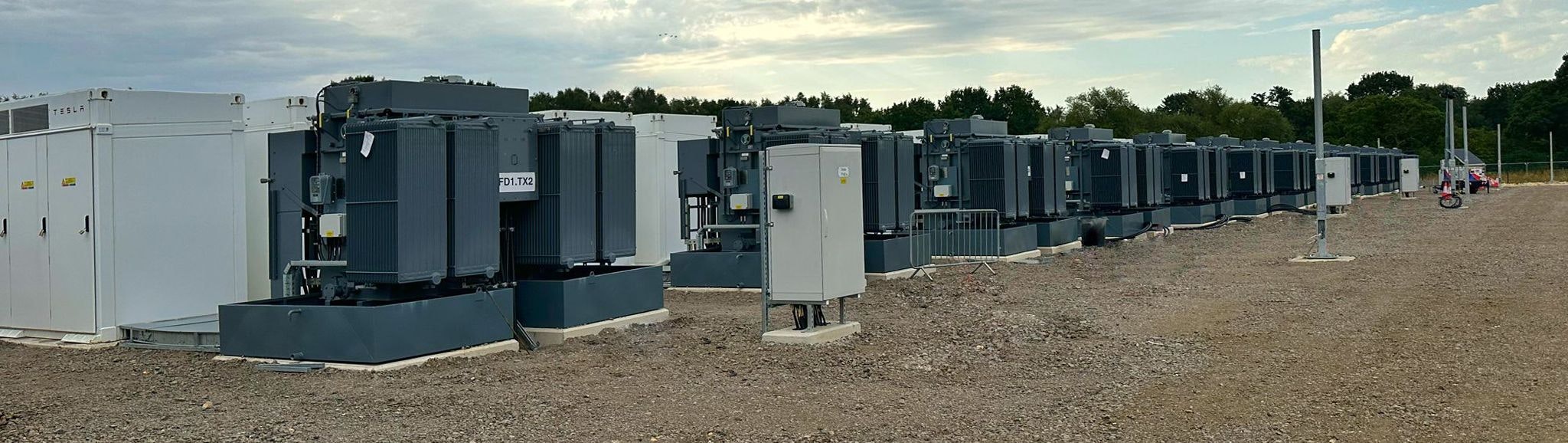

Wilson T2 distribution transformers at Lakeside energy park

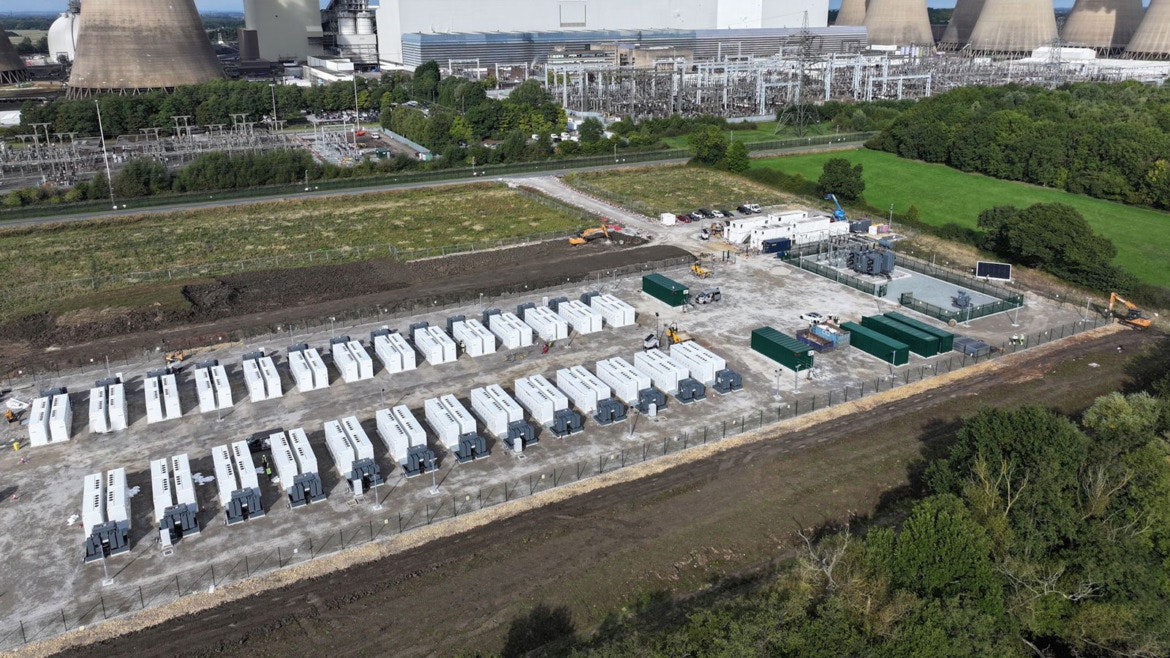

wilson t2 distribution transformers at lakeside bess

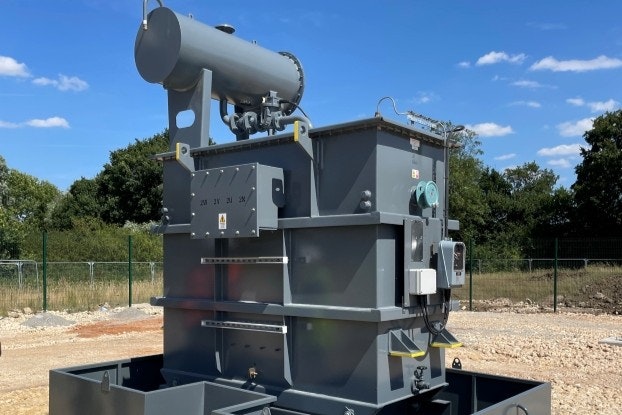

Wilson Auxiliary Transformer at Lakeside energy park
