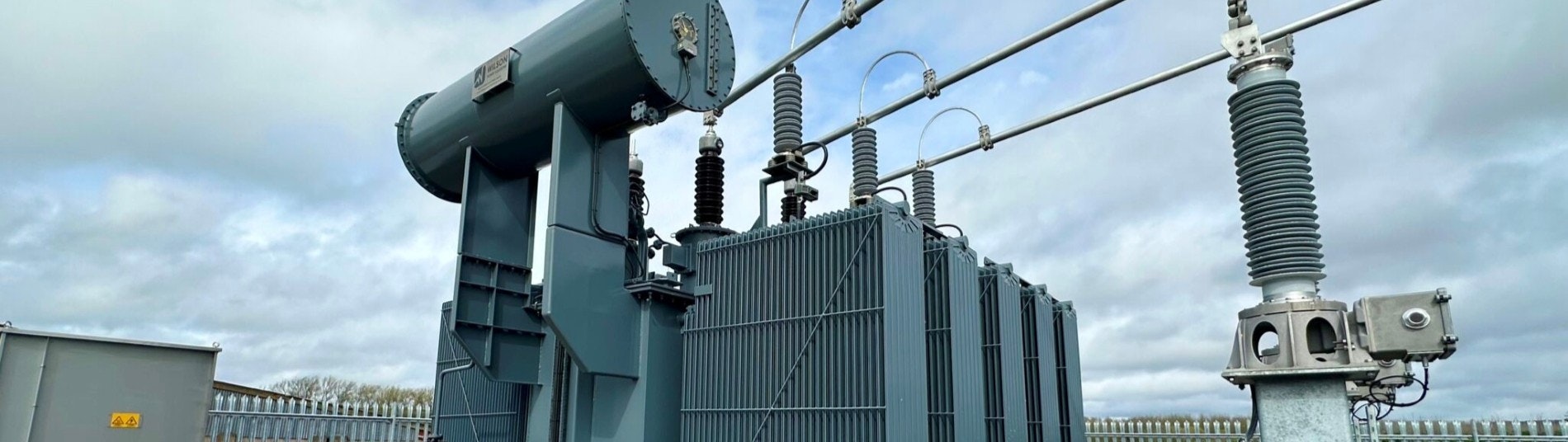

Wilson Power Transformer at Larport Solar Farm

Larport Solar Farm

Larport Solar Farm is located south of the Clay Hill Pit Substation at Dormington and received planning permission from Herefordshire County Council after community consultation. With 45MW capacity, the solar farm will generate enough to power the equivalent of up to 10,400 homes, saving around 9,432 tonnes of CO2 every year. Conrad Energy is leading the development of this site, with Green Frog Connect overseeing the EPC. The project aims to achieve a biodiversity net gain by reducing intensive farming, which supports soil health and local ecology. Wildflowers will be planted around the solar panels to enhance biodiversity and attract wildlife, while bat, bee, and bird boxes will be installed to encourage nesting and roosting. Additionally, grazing will be incorporated around and beneath the solar panels, which will be mounted at a height that allows for this practice.

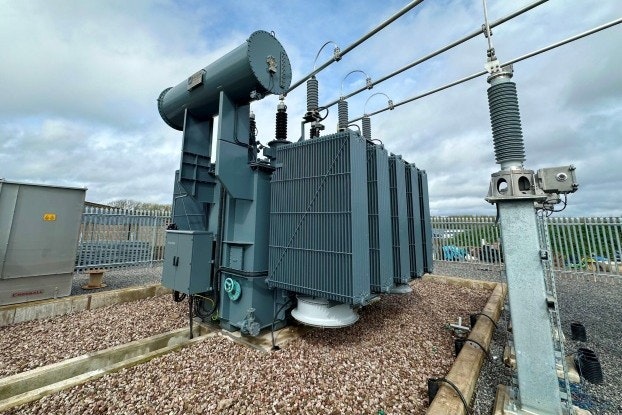

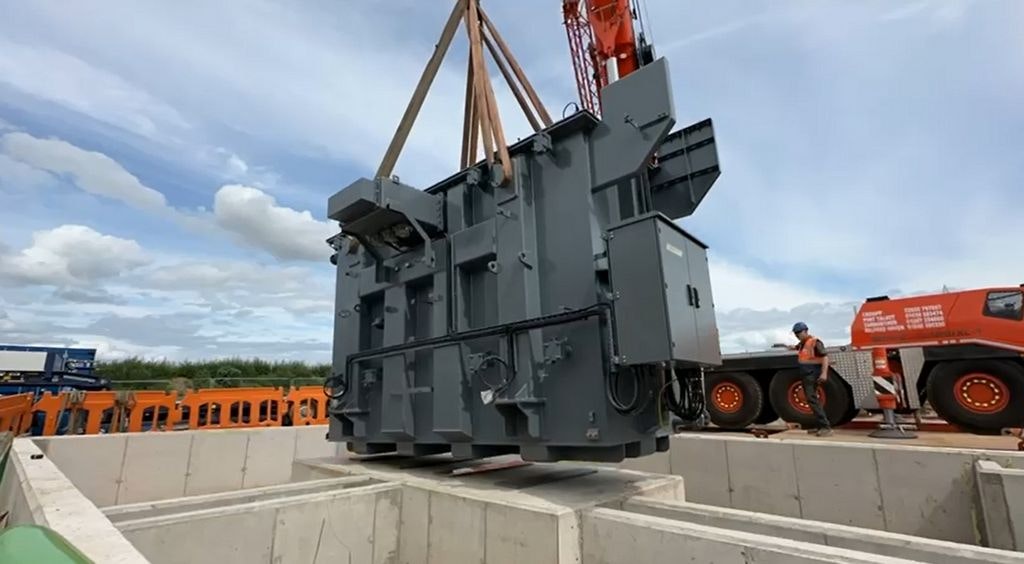

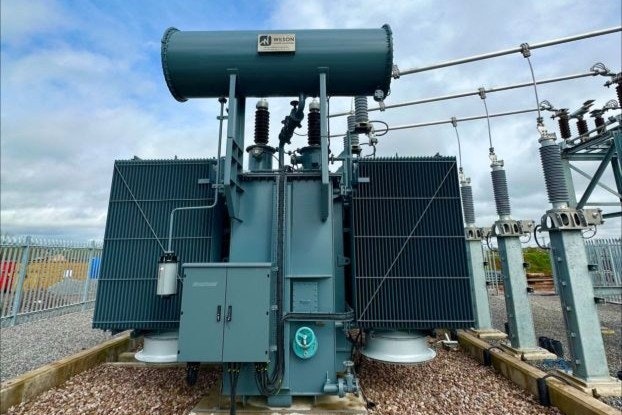

With Green Frog Connect managing the Engineering, Procurement and Construction (EPC) of Larport Solar Farm, we supplied the site with a 30/41MVA Continuous Maximum Rating (CMR) 66/33kV Wilson Power Transformer. The transformer was offloaded and positioned on a plinth, after which our site team installed the radiators and fans onto the transformer tank and connected the pre-assembled pipework. A mobile crane was used to fit the oil conservator. Following this, the team conducted on-site testing and pre-commissioning of the equipment.

Sector

Renewable Energy - Solar

Customer/Developer

Green Frog Connect

Location

Hereford

Project

Larport Solar Farm 45MW

Scope of Work

30/41MVA 66/33kV CMR Wilson Power Transformer

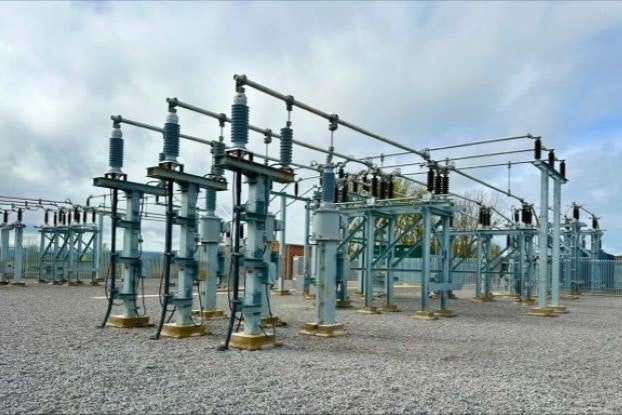

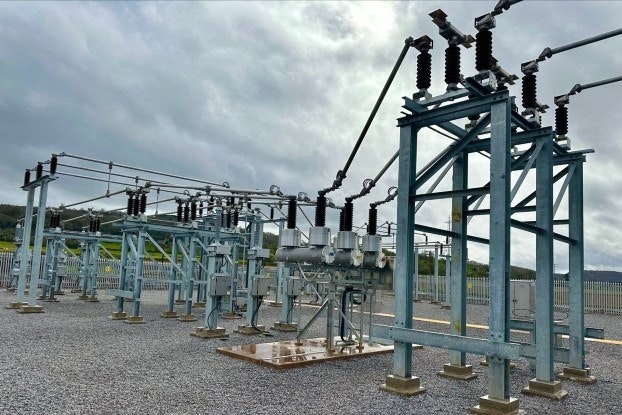

Wilson Power Transformer at Larport Solar Farm Wilson Power Transformer at Larport Solar Farm Larport Solar Farm substation Larport Solar Farm substation
