Molins Data Centre

Molins Data Centre

Molins data centre campus is set to become a premier facility. It will feature four data centre buildings for hyperscale players, with a total IT load of 75MW upon full build-out. Spanning 50 acres, the site has secured planning approval, and the facility is expected to be ready for service in Q2 2026.

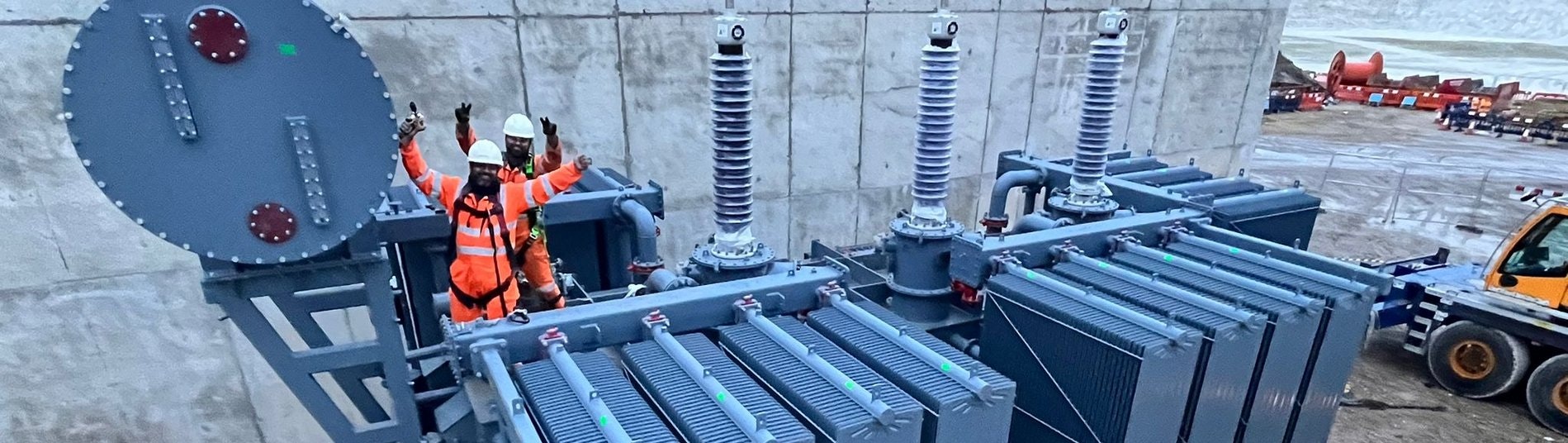

The data centre campus has a National Grid contract for 120MVA, and our transformer plays a pivotal role in supporting this high-capacity requirement. As part of this large-scale infrastructure project, we supplied a 120MVA 132kV/20kV-20kV ONAN/ONAF Wilson Power Transformer, a critical component in ensuring reliable power distribution for the data centre. We provided the site with a few auxiliary and earthing transformers to operate ancillary site services and offer protection.

Sector	Data Centres
Project	Molins Data Centre Campus - AWS
Location	High Wycombe
Scope of Work	120MVA 132/20-20kV Wilson Power Transformer Two 300kVA 20kV/415V Auxiliary Earthing Transformers Two 20kV 1000A Earthing Transformers

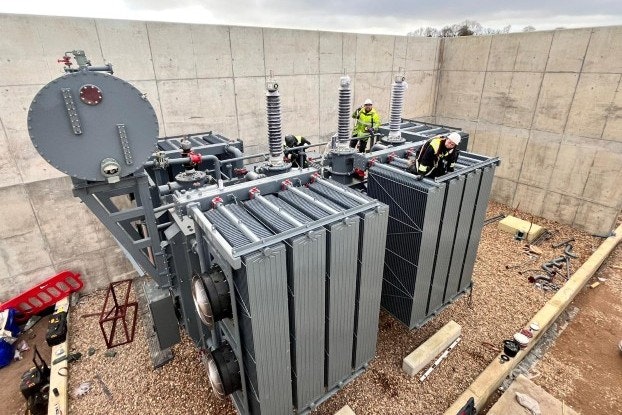

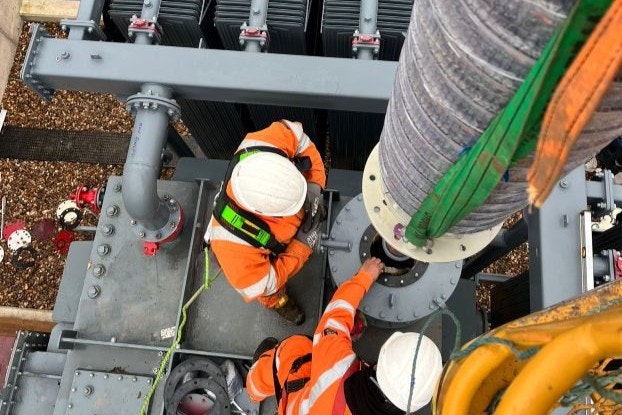

Our site team expertly carried out the installation, including the precise positioning of the tank, radiators, and conservator using a crane. Additionally, we managed the connection of pre-fabricated pipework between the radiators and tank and conducted pre-commissioning activities to ensure optimal functionality. The installation was successfully completed in collaboration with the contractor responsible for this project.

By providing high-efficiency power solutions, we are proud to contribute to the success of the High Wycombe Data Centre, ensuring a stable and robust power infrastructure capable of supporting its ambitious operational goals.

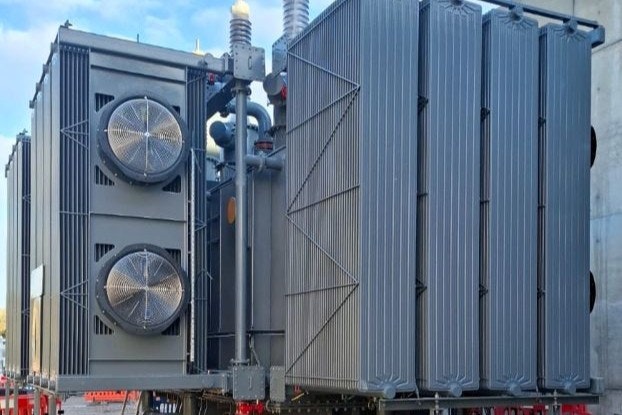

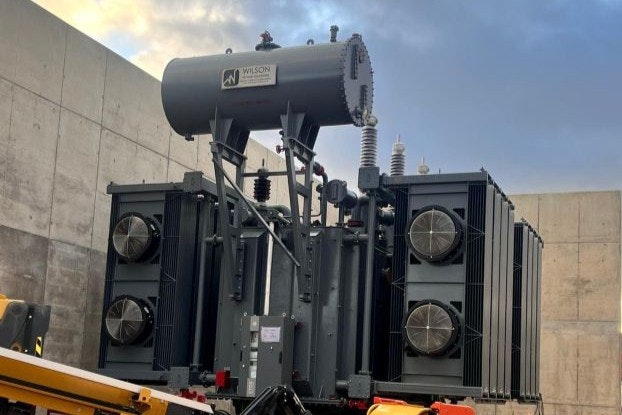

120MVA Wilson Power Transformer - Molins Datacentre
