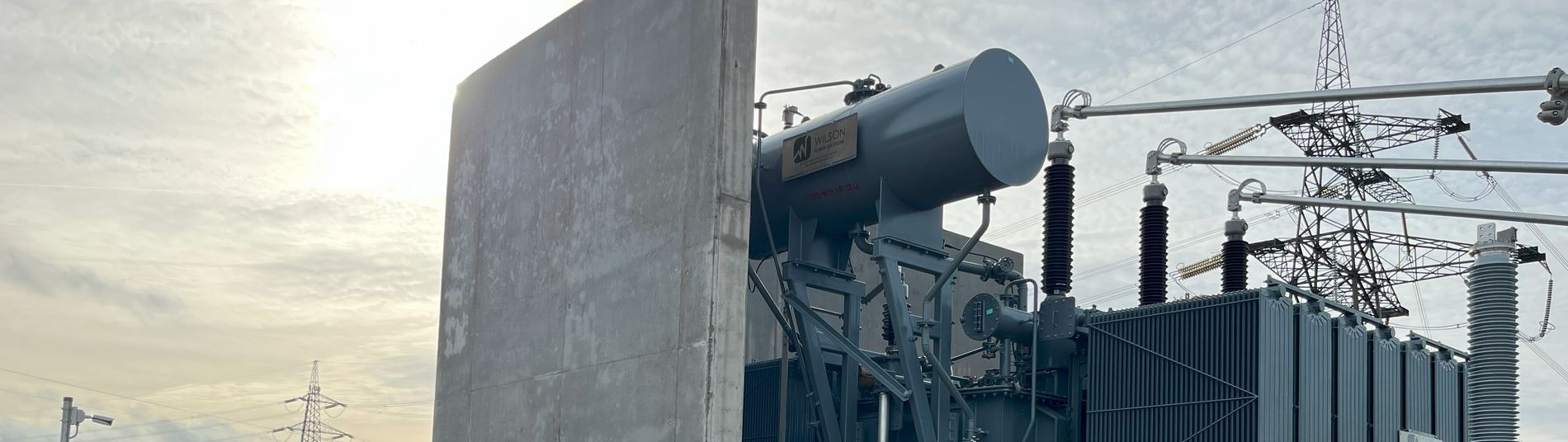

Wilson Power Transformer with blast shield at Osbaldwick battery energy storage system (BESS)

50MW/75MWh Osbaldwick BESS

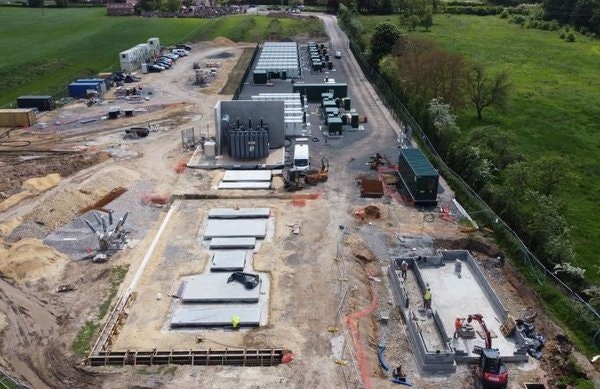

Owned by Gresham House and developed by Metka EG, Osbaldwick BESS in York showcases twenty-five one-and-a-half-hour batteries by Contemporary Amperex Technology Co., Limited (CATL). At certain times of the day, this battery energy storage site can provide power to as many as 100,000 homes for up to an hour.

This project had several challenges to overcome regarding proximity to trees, requirements for additional drainage work and the potential for ecological risks. An ecological assessment was undertaken, and mitigation measures were implemented to protect wildlife and comply with local and national planning policies.

Sector

Battery Energy Storage System

OWner/Developer

Gresham House & Metka EG

Project

Osbaldwick 50MW/75MWh

Location

York

Scope of Work

60MVA 132/33kV Power Transformer

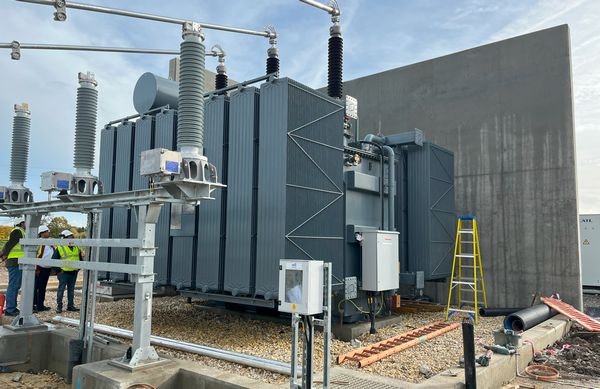

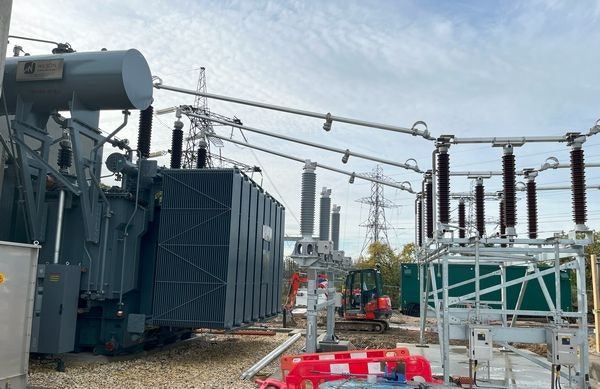

We supplied a 60MVA 132/33kV Power Transformer to the 50MW project, connecting it to the local Distribution Network Operator, Northern Power Grid. Our team attended the site to help with the offloading and assembly of the transformer. Enclosed by two blast walls, a jacking and skidding method was used to position the transformer on the plinth.

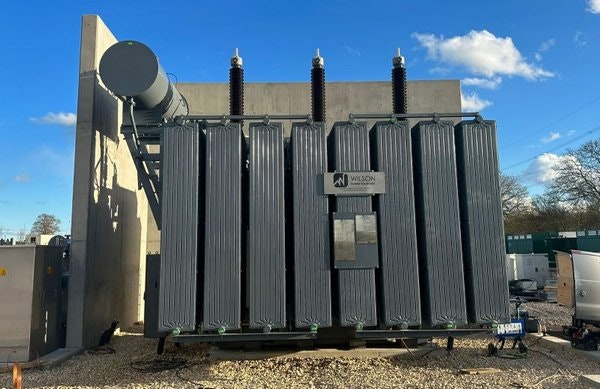

Wilson Power Transformer with blast shield at Osbaldwick battery energy storage system (BESS) Wilson Power Transformer with blast shield at Osbaldwick battery energy storage system (BESS) Wilson Power Transformer with blast shield at Osbaldwick battery energy storage system (BESS) 60MVA 132kV/33kV Wilson Power Transformer for Osbaldwick BESS
