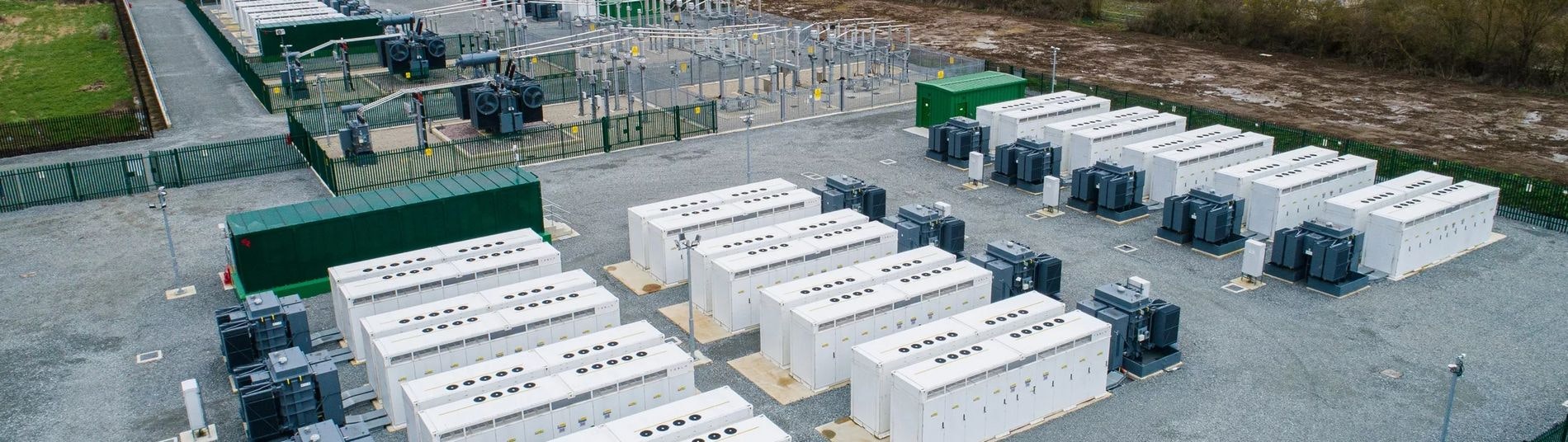

4.2mva Wilson T2 distribution transformers at BESS Clay Tye

99MW/198MWh Europe’s joint largest BESS upon energisation

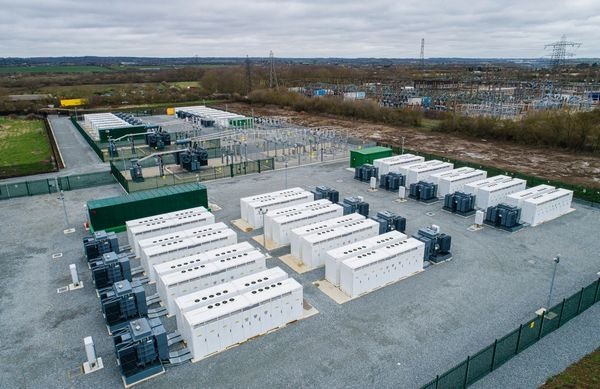

Clay Tye Battery Energy Storage System (BESS) is a significant energy infrastructure project located in Upminster, Essex, UK. Developed collaboratively by Harmony Energy and Fotowatio Renewable Ventures (FRV), the facility has a capacity of 99MW/198MWh, making it Europe's joint-largest operational BESS upon energisation. The system comprises 52 Tesla Megapack lithium-ion batteries, integrated with Tesla's Autobidder AI software for efficient energy capacity sharing and project management. Connected to the UK Power Networks' distribution network, the facility stores energy from renewable sources and provides flexibility during peak demand periods, supporting the UK's transition away from fossil fuels.

The primary function of the Clay Tye BESS is to store excess energy generated during low-demand periods and release it during peak times, thereby enhancing grid stability and facilitating the integration of renewable energy sources into the UK's power network. This capability contributes to future energy security, aims to make energy bills more affordable, and supports the grid's decarbonisation.

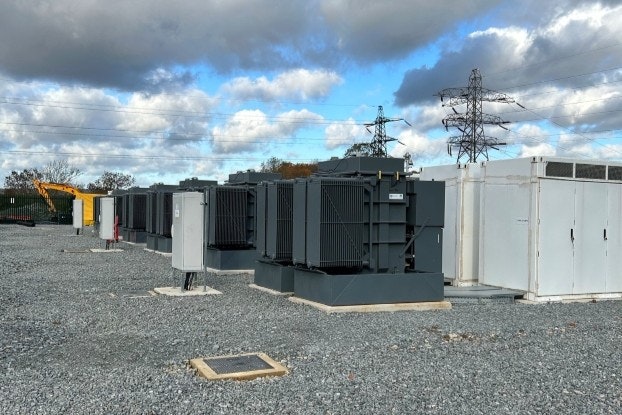

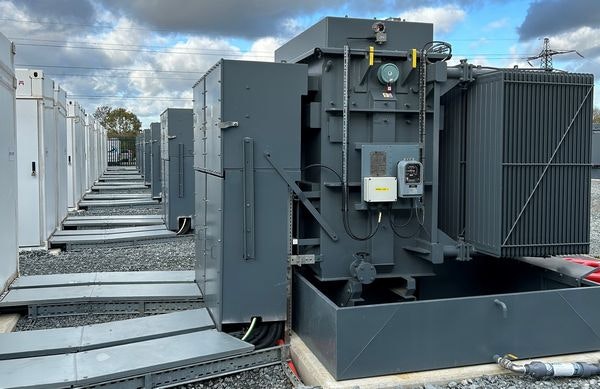

Clay Tye has enough power capacity to supply energy to more than 300,000 UK homes for 2 hours at a time. We provided the site with twenty-six 4200kVA 33kV/480V-480V Wilson T2 Ecotrans® MV Transformers, each connected to two Tesla megapacks, and two 150kVA 33kV/415V Auxiliary Earthing Transformers, which provide a neutral point for grounding and improve system stability and safety while supplying power to the balance of plants, such as control circuits, lighting, cooling systems, protection relays, and other essential equipment. All transformers are custom-designed and built to suit the site's voltage needs and provide durability, resilience and modularity whilst maintaining material efficiency and good return on investment.

Sector

Battery Energy Storage System

Developers

Fotowatio Renewable Ventures & Harmony Energy

Project

Clay Tye 99MW/198MWh

Location

Upminster, Essex

Scope of Work

  • Twenty-six 4.2MVA 33kV/480V-480V Wilson T2 Ecotrans® Distribution Transformers

  • Two 150kVA 33kV/415V Auxiliary Earthing Transformers

52

Tesla Megapacks

26

MV Transformers

300000

homes powered

for two hours

At the time of energisation, Clay Tye shared the joint-largest position with Bumpers in Buckinghamshire, another project we supplied transformers to. Closely followed by Pillswood in Cottingham as the third-largest operational BESS. This means Wilson Power Solutions provided transformers to all three largest battery energy storage systems in Europe by MWh.

Wilson Power Solutions is a strong partner to battery energy storage and solar developers in the UK and Europe. We continue to grow our project portfolio, working closely with industry partners, while we recognise the importance of providing bespoke solutions for individual site requirements and unique transformer specifications.
