LV Cabinets and MV Switchgear

A Comprehensive Solution of Packaged Substations

To complement our transformer supply, we offer fully integrated packaged substations. Utilising industry-leading solutions, we stock a comprehensive range of MV switchgear and LV cabinets that can be close-coupled to transformers or free-standing. Our options include a packaged solution fully procured by us or free-issued by the customer.

A wide range of Medium Voltage Switchgear

Our long-standing relationships within the industry and ability to hold stock, mean we can supply a wide range of indoor and outdoor MV Switchgear up to 36kV, available as close coupled or free standing. Offering safety, protection, control, isolation and monitoring, our stock of switchgear includes:

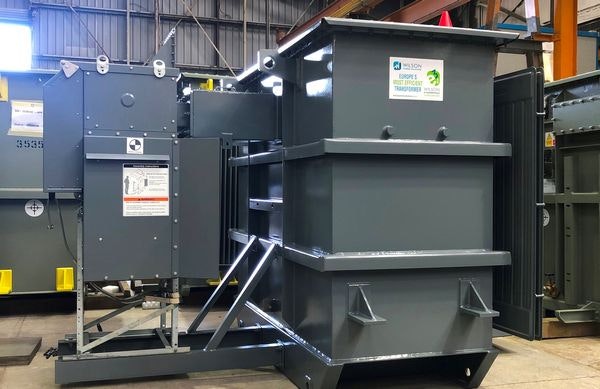

Schneider Electric - Ringmaster Units

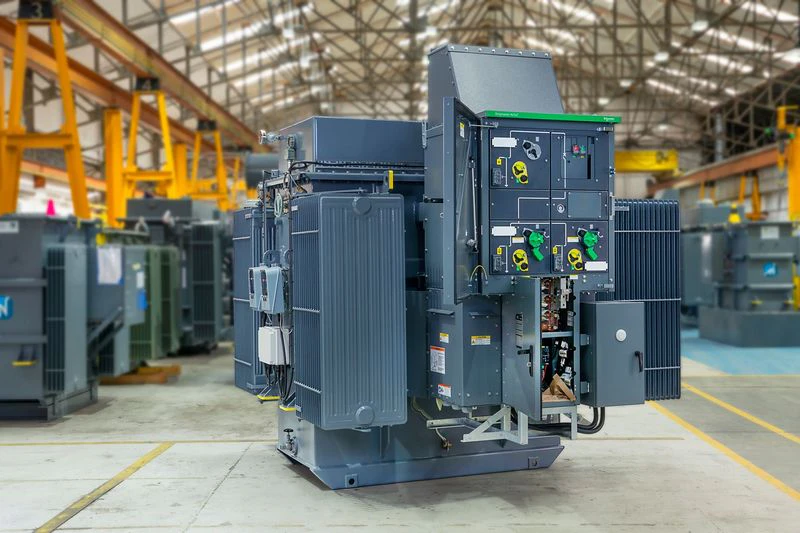

RN2d, RN6d, CN2, SN6, CE2, CE6, SE6, and AirSeT (SF6 Free).

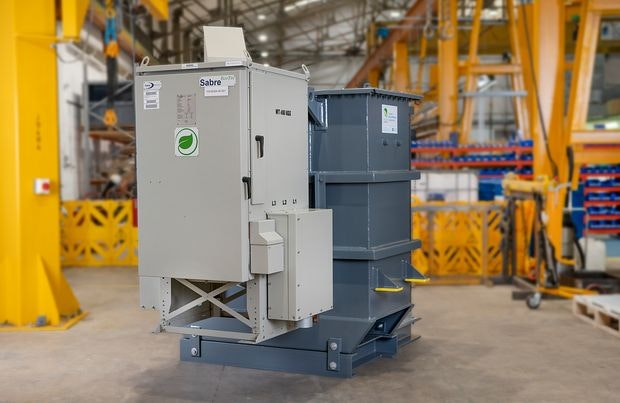

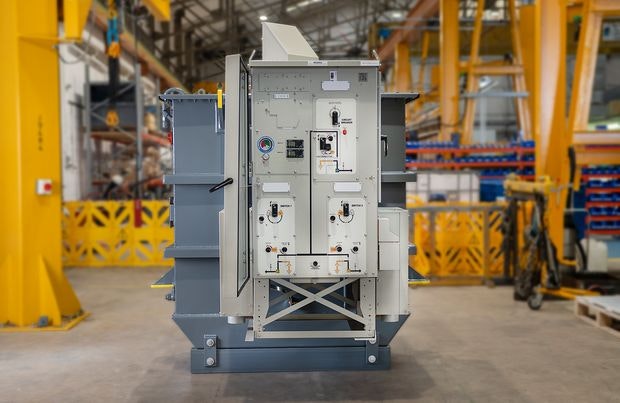

Lucy Electric - Sabre Ring Main Units

VR2N2a, VRN6a, EcoTec (SF6 Free), and others.

Selected DNO Approved Variants

For iDNO and ICP connections.

distribution transformer packaged substation

Features & Benefits

Turnkey MV Switchgear Solutions

Top bottom cable entry icon

Top or bottom cable entry

DNO Approved Ring Main Units icon

DNO approved Ring Main Units

Earth Fault Passage indication icon

Earth fault passage indication

voltage presence indicator icon

Voltage Presence Indication

relay & TLF protection icon

Various Relay or TLF protection

electric device icon

Metering

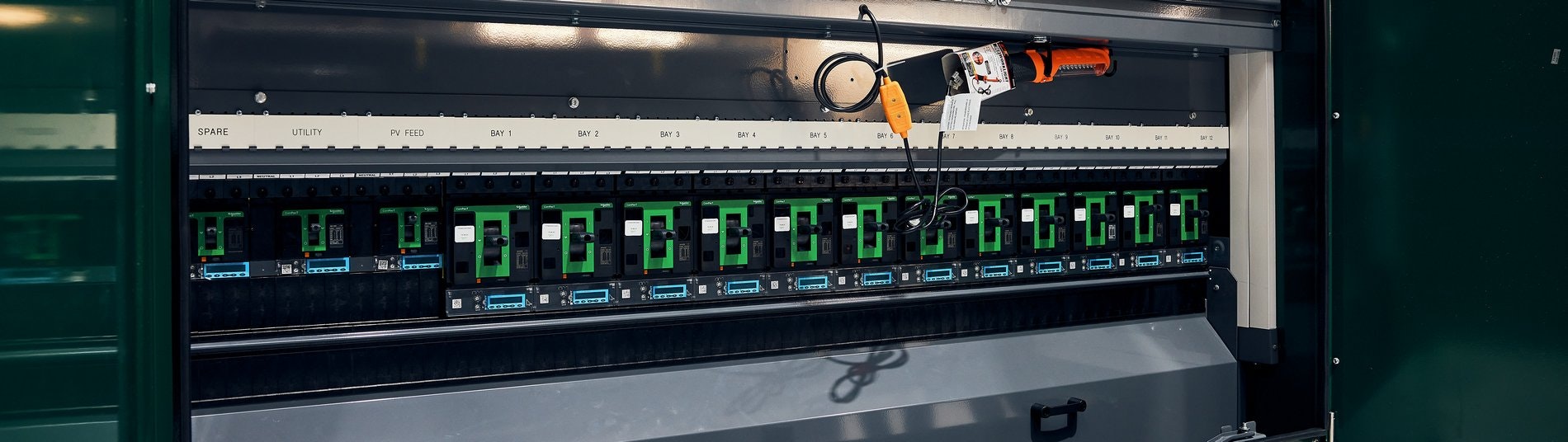

Standard and bespoke Low Voltage Cabinets

We supply a range of LV circuit breaker cabinets and feeder pillars suitable for indoor and outdoor applications. We design steel structures to support the weight of the LV cabinets if they are close-coupled to transformers.

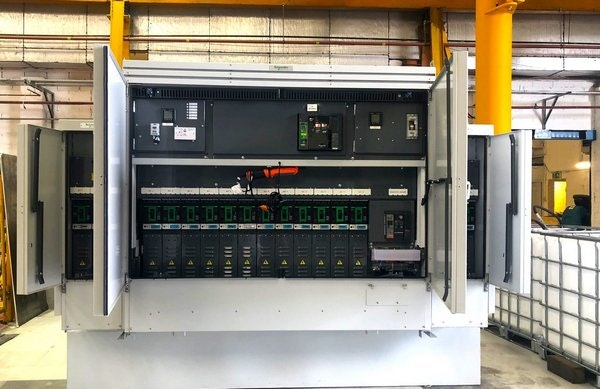

LV feeder pillar

Lucy Electric

Aculok TMO with 4, 5, 6 or 7 outgoing fuse ways or ACB from 800A up to 2500A.

Schneider Electric

LV Feeder Pillar with a range of switchable fusegear (4, 5, 6 & 7 fuse ways), MCCB up to 1600A and ACB up to 3200A.

Customisable Solutions

By industry partners such as Charnvel, Hallson, ESE and others.

Features & Benefits

Standard & Bespoke LV Solutions

relay & TLF protection icon

Surge protection

electric panel icon

Removable front panels for easy installation on-site

frame support icon

Structural support frame for larger LV cabinets

ancillaries options icon

Single or multiple fuseways, MCCB or ACB devices

Earth Fault Passage indication icon

Restricted or unrestricted Earth Fault

electrical cabinet icon

Compact solutions

electric device icon

Metering
